Section 5.25

VAG - Audi, Skoda & VW Timing Tools

Star Bit Set

CT2115

Star Bit Set - 5pc 3/8in.Dr

5pc Star Bit Set - 3/8in.Dr
Universal Joint Socket
Sizes : T30 | T40 | T45 | T50
T45 Used for Timing Belts on VAG Petrol and Diesel Engines

Star
t Click picture for more information

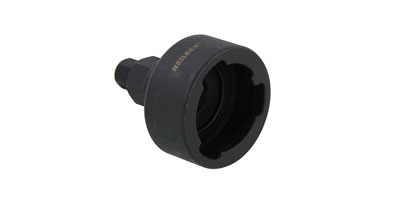

Fuel Pump Sprocket Socket

CT5469

Fuel Pump Sprocket Socket - VAG

VAG Diesel Pump Sprocket Puller
15mm Hex Drive with 24mm Hex Retainer.
For removing the high pressure fuel pump on 1.4 | 1.6 | 2.0L TDi engines.
Applicable to VW and SEAT vehicles from 2008 - 2013.
OEM Code : T10489.

Fuel
t Click picture for more information
Pump Pulley Remover - VAG

CT4763

Pump Pulley Remover - VAG

VAG Pump Pulley Remover
For the removal of the high pressure pump hub
on 1.6L and 2.0L TDi common rail diesel engines.
OEM Code : T40064

Pump
t Click picture for more information
VAG Camshaft Adapter Socket

CT4752

Camshaft Adapter Socket - VAG

VAG Camshaft Adapter Socket
3/8in. Drive / S45C Steel.
Use to rotate and hold the intake camshaft during timing chain service
on 4 cylinder 1.8L and 2.0L TFSi generation III direct injection engines.

VAG
t Click picture for more information

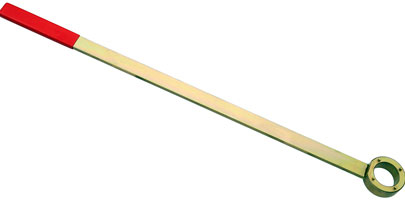

VAG Crankshaft Pulley Holding Tool

CT4655

Crankshaft Pulley Holding Tool - VAG

Audi / VW Crankshaft Pulley Holding Tool
For holding the crankshaft pulley when removing or installing the crankshaft central bolt.
AUDI : A3 | A6 | Q5 2004 onwards
VW : TSI / TFSI engines with chain 1.8T | 2.0L 4V
OEM Code : T10355

VAG
t Click picture for more information

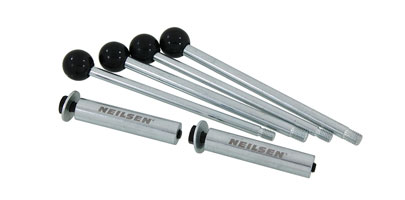

Front End Support Guides - VAG

CT5734

Front End Support Guides - VAG

VAG Service Position Front End Support Guide Set
Suitable for extending the front panel of the vehicle
to provide increased space in engine compartment
for carrying out various service applications.
Guides : M8 x 1.25mm / M10 x 1.5mm
Applicable to :
Audi : A4 / A5 / A6 / A8 /Q5
Skoda : Superb
VW : Passat

Front
t Click picture for more information

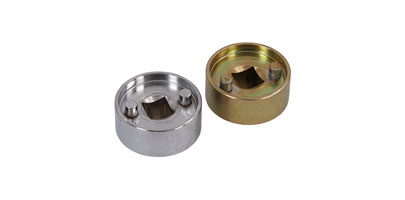

Camshaft Adjuster Sockets

CT0600

Camshaft Adjuster Sockets - 3/8in.Dr

VAG Camshaft Adjuster Sockets - 3/8in.Dr
For the camshaft adjustment of 4/3-way central valve.
Fitted to : Audi A3 | A4 | A5 | Q5 1.8
and VW 2.0 litre engines with chain drive

Camshaft
t Click picture for more information

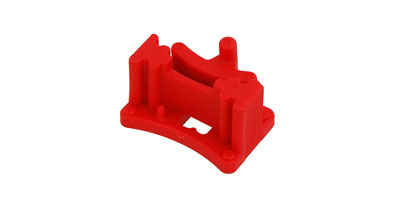

VAG 1.0L Camshaft Sprocket Locking Tool

CT4848

Camshaft Sprocket Locking Tool - VAG

VAG Camshaft Sprocket Locking Tool
VAG 1.0L TSI 3 cylinder petrol engines
For locking the camshaft in position during engine timing and servicing.

OEM Code : T10476
Common to : CT4424 | CT4622 | CT4651

VAG
t Click picture for more information

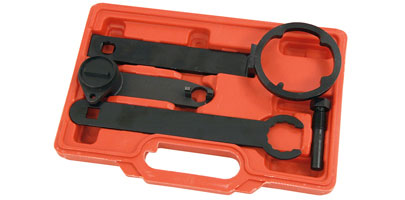

VAG 1.0L Camshaft Locking Tool Set

CT4644

Timing Tools Set - VAG 1.0L

VAG Timing Tool Set
For Jetta / Santana / Gran Lavida / Golf 7
Locks camshaft when checking and adjusting timing
1.0 MPI and 1.0 MPI / GNC Petrol Engines
With Crankshaft Locking Bolt
Camshaft Adjusting plate
Camshaft Sprocket Locking Tool
Tension Adjusting Wrench
Assembly Tool

VAG
t Click picture for more information

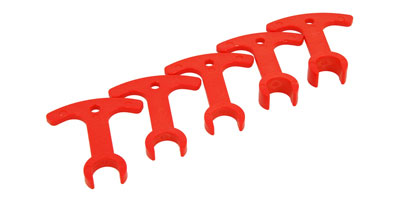

Audi Camshaft Spacer Set

CT4415

Camshaft Spacer Set - VAG

VAG Camshaft Spacer Set
2 sizes of spacers for locating
the AVS spline ends on the camshaft.
For Audi A4 2008 | Q5 2009
4 cylinder petrol injection 2.0L turbo engine
OEM Code : T40191

Audi
t Click picture for more information

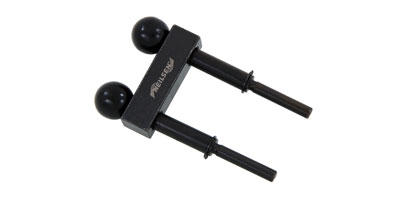

Camshaft Locking Tool - VAG

CT3886

Camshaft Alignment Tool - VAG

VAG Camshaft Locking Tool
Applicable to -
VW | AUDI 1.4 / 1.6L
VW Lupo | Polo | Golf IV | Bora / Audi A2 vehicles
OEM Codes : T10016 | T10074

Camshaft
t Click picture for more information

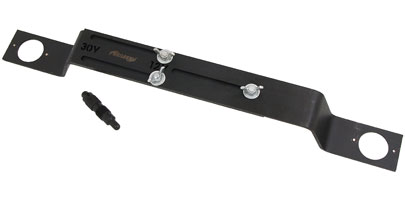

Adjustable Twin Camshaft Holding Bracket

CT4634

Camshaft Alignment Tool - VAG

VAG Adjustable Camshaft Locking Tool
for VW 12 - 30 Valve vehicles.
For precise assembly of the auxiliary belt
avoiding distortion of the camshaft.
Adjustable camshaft locking strap will hold the twin cams in place.
OEM Codes : 3391 | 3242 | 3243

Adjustable
t Click picture for more information

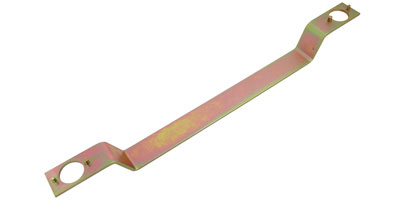

VAG Camshaft Alignment Tool - V6

CT4409

Camshaft Alignment Tool - VAG

VAG V6 Camshaft Alignment Tool
Applicable to 1995-2004
new body style VW and AUDI models.
OEM Code : VAG 3391

VAG
t Click picture for more information

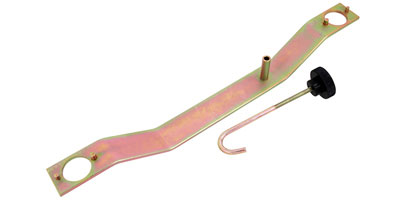

VAG Camshaft Alignment Tool Kit

CT4407

Camshaft Alignment Tool - VAG

VAG V6 Camshaft Alignment Tool
Essential tool for locking and setting the camshaft
and crankshaft during timing belt replacement.
With Mounting Bracket for difficult access.
Applicable to :
Audi : 80 | A4 | Coupe | Cabriolet | A6 | A8
VW V6 engine codes : ABC | AAN

VAG
t Click picture for more information

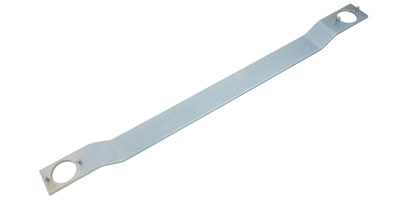

VAG Camshaft Alignment Tool - V8

CT4408

Camshaft Alignment Tool - VAG

VAG V8 Camshaft Alignment Tool
Designed to align the camshafts at TDC position
when adjusting and assembling.
Applicable to VAG V8 5-valve engines.
OEM Code : T40005

VAG
t Click picture for more information

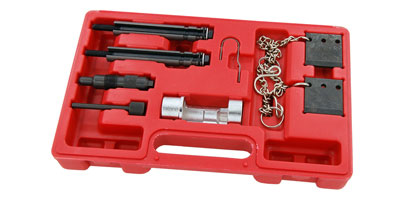

Camshaft Alignment Tool Kit

CT3425

Camshaft Alignment Tool Kit- VAG

VAG Camshaft Alignment Set
Specially designed to set the Camshaft in the correct position for servicing.
Audi - A4 / A6 / A8 / A11 ( 97 - 04 )
VW - Passat ( 98 - 04 )

Camshaft
t Click picture for more information

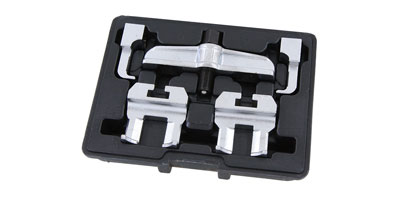

Camshaft Drive Belt Pulley

CT3363

Camshaft Belt Sprocket Puller - VAG

VAG Camshaft Drive Belt Sprocket Puller
For removing the camshaft sprockets
on a variety of VW and Audi camshafts.
Includes 17mm and 23mm pulling arms.
OEM Code : T40001

Camshaft
t Click picture for more information

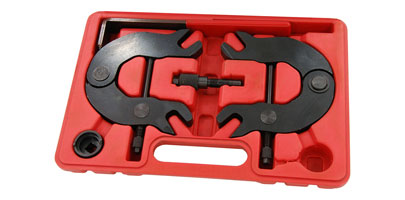

Camshaft Alignment Set

CT3364

Camshaft Alignment Set - VAG

VAG Camshaft Holding / Alignment Tool Kit
for Audi A4 | A6 | A8 - V6 3.0 Petrol Engines
With Camshaft Locking Tool
Crankshaft Retainer Tool
Tensioner Pulley Wrench
Used for timing belt replacement and engine repair.

Engine codes : ASN | AVK | BBJ

OEM Codes : 3387 | T40011 | T40026 | T40028 | T40030

Camshaft
t Click picture for more information

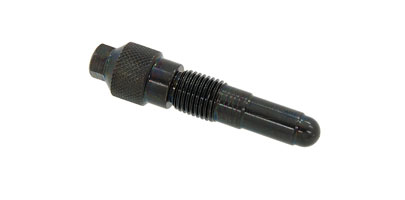

Audi Crankshaft Locking Pin

CT3161

Crankshaft Locking Pin - VAG

VAG Crankshaft Locking Pin - M14 x 1.5
for locking the crankshaft in TDC position
while Replacing the timing belt on
Audi A6 2005 models with 6 cylinder 2.4 / 3.2 FSI engines
OEM Code : T40069

Audi
t Click picture for more information

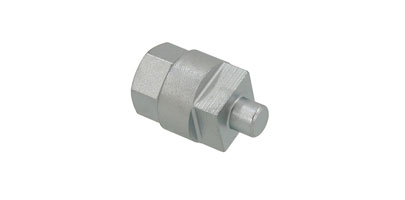

Crankshaft Turning Adaptor

CT3659

Crankshaft Turning Adaptor - VAG

VAG Crankshaft Turning Adaptor
22mm Square with 12mm Rotating Pivot Pin
Dual Drive : 1/2in.Dr plus 24mm Hex
Used for turning the crankshaft pulley.
Applicable to : 2.4 | 3.2 | 4.2 FSI Engines.
OEM Code : T40058

Crankshaft
t Click picture for more information

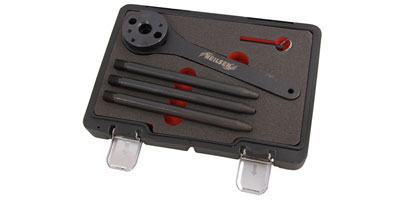

Crankshaft Locking Tool - VAG

CT4425

Crankshaft Locking Tool - VAG

VAG Crankshaft Locking Tool Set
Suitable for VW Touareg 2003 >
Phaeton 2003 > with 10 cylinder Diesel Engines.
For locking crankshaft when adjusting engine timing.
Adjusting bolts for mounting the engine control module

OEM Codes : T10195 | T10200

Crankshaft
t Click picture for more information

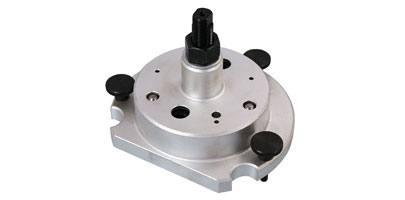

Crankshaft Seal Flange Installation Tool

CT0031

Crankshaft Seal Flange Installation Tool

VAG Crankshaft Seal Flange Remover and Installer
for 1.4 and 1.6 - 16 Valve VAG engines
fitted to Audi / Skoda / Fiat and VW vehicles
Specific tool vital to ensure the correct alignment
of the main seal house crankshaft sensor.
The Seal housing carries the crankshaft sensor mounting.
OEM Code : T10017

Crankshaft
t Click picture for more information

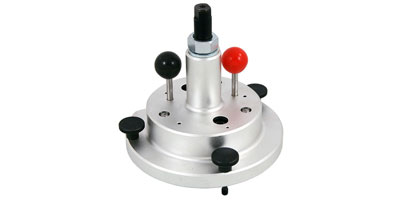

Crankshaft Seal Flange Installation Tool

CT4084

Crankshaft Seal Flange Installation Tool

VAG Crankshaft Seal Flange Installation Tool
Designed to renew the crankshaft oil seal on Audi / VW vehicles
Applicable to 16V / 20V - 1.9 / 2.0 Diesel Engines since 2006.
For 4 Valve Diesel engines with integrated sender wheel.
Audi A3 4-cyl. VW Golf / Touran
OEM Code : T10134

Crankshaft
t Click picture for more information

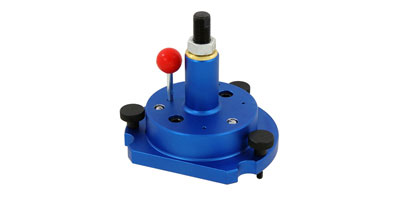

Crankshaft Seal Flange Installation Tool

CT5567

Crankshaft Seal Flange Installation Tool

VAG Crankshaft Oil Seal Tool
Designed for VW 2.5 TDI | 2.5 Blue TDI Engines.
The flywheel end oil seal is integral with the oil seal housing
and speed sender and is supplied with a new timing ring.
If the oil seal is faulty then the whole assembly must be renewed.
Suitable for VW Crafter 2.5L / 2006 - 2013
Engine Codes : BJJ | BJK | BJL | BJM | CEBA | CEBB | CECA | CECB
OEM Code : T50010

Crankshaft
t Click picture for more information

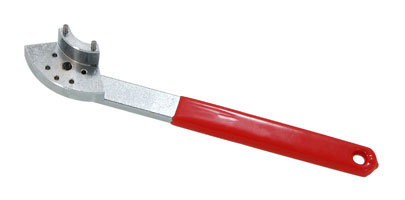

VAG Timing Belt Tension Adjuster

CT3885

Belt Tension Adjuster - VAG

VAG Tensioner Wrench
Multi-position timing belt tension wrench for
Volkswagen | Audi | Skoda | Seat vehicles.
5 variable positions for extra easy use.
Suitable for both petrol and diesel engines.

VAG
t Click picture for more information

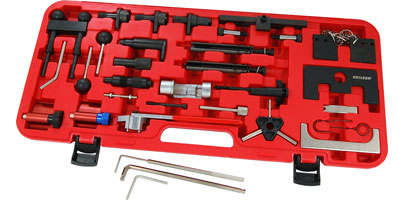

Audi / VW Timing Tool Kit

CT3146

Timing Tool Set - VAG

VAG Timing Tool Set
For Audi / Seat / Skoda / VW
1.9 / 2.0 TDI pump / nozzle
1.9 TDI / conventional
2.5 V6 TDI | 3.3 V8 TDI Diesel Engines
1.2 3-cylinder and 1.4 | 1.6 Petrol Engines
With Camshaft Locking Tools
Injection Locking Tools
Crankshaft Locking Tools
and Injection Nozzle Wrench : 22mm.

Audi
t Click picture for more information

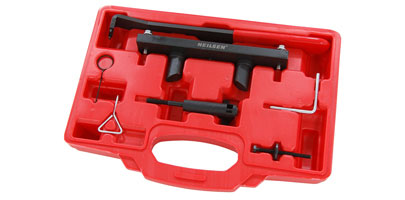

Audi / VW Timing Tool Kit

CT3362

Timing Tool Set - Audi / VW

VAG Timing Tool Set
For 2.0 FSI Petrol Engines since 2003.
Found on - Audi A3 | VW Golf and Touran models
Includes :
Pin Wrench
Alignment Pin
Locking Pins
Chain Tensioner / Tensioning Screw
Camshaft Locking Tool

Audi
t Click picture for more information

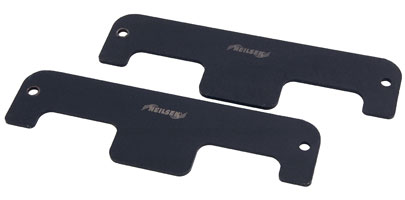

VAG Camshaft Locking Tool

CT4983

Camshaft Locking Tool - VAG

VAG Camshaft Locking Tool
W8 and W12
For aligning the camshafts on
W8 - V6 R32 3.2L
and W12 6.0L
OEM Codes : T10068 | T10068A

VAG
t Click picture for more information

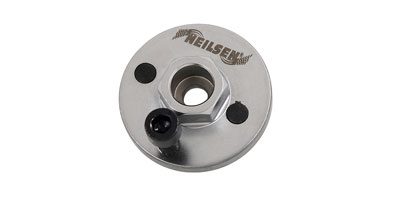

VW Crankshaft Rotation Tool

CT4638

Crankshaft Rotation Tool - VAG

VAG Crankshaft Rotation Tool
for VAG 5 Cylinder Engines
Necessary for crankshaft adjustment and as use as a lever.
Suitable for all 5 cylinder VW diesel engines -
VW touareg as of 2003 and transporter as of 2004
Fixing screw allows easy mounting on crankshaft.
OEM Code : T10225

VW
t Click picture for more information

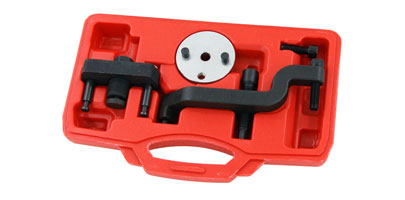

VW Water Pump Removal Kit

CT3394

Water Pump Removal Kit - VAG

VAG Water Pump Removal Kit
This kit is essential for the removal of the water pump
and the alignment of the engine at top dead centre
on Transporter and Touareg vehicles
For 2.5L 5-cylinder TDI engines.

VW
t Click picture for more information

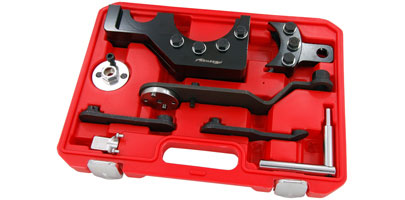

VAG Timing Tool Set

CT3584

Timing Tool Set - VAG

VAG Timing Tool Set
For 2.5 / 4.9D / TDI PD Touareg and Phaeton Models
Suitable for VW T5 as of 2004
Touareg and Phaeton as of 2003 with 5 and 10 cylinder engines.
Engine Codes : AXD | AXE | BAC | BLJ | BLK | BNZ | BPC | BPD | BPE
Camshaft Locking Tools and Clamp for 5 and 10 cylinder engines.
Special Socket for rotating the crankshaft of 5 cylinder engines.
Crankshaft Locking Wrench for 5 cylinder engines.
Tensioner Wrench.

VAG
t Click picture for more information

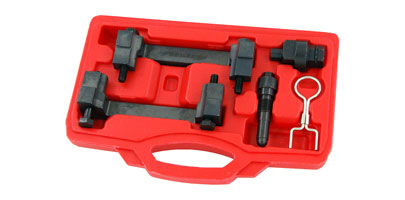

Timing Tool Set - Audi / VW

CT3590

Timing Tool Set - Audi / VW

VAG Timing Tool Set
For checking and setting camshaft timing on
Audi V6 | V8 and VI0 Engines with Chain Drive
Camshaft Locking Tool
Crankshaft Turning Adaptor
Crankshaft Locking Pin
Chain Tensioning Locking Pin

Timing
t Click picture for more information
Timing Tool Set - Audi / VW

CT5568

Timing Tool Set - Audi / VW

VAG Timing Tool Set
For locking the camshaft when adjusting timing
on Audi / Bentley / VW vehicles.
Applicable to : 8 cylinder 4.0 TFSI engines
A6 - 2011 | A8 - 2010
OEM Code : T40264

Timing
t Click picture for more information
Diesel Engine Setting / Locking Kit

CT3594

Timing Setting and Locking Kit

VAG Diesel Engine Setting / Locking Kit
Cranshaft Locking Tool.
Camshaft / Tensioner Locking Pins.
For Engines with Hydraulic Belt Tensioners in -
VAG : 1.2D | 1.4D | 1.9D | 2.0TDi PD Belt Drive Engines.
Suitable for Audi / Seat / Skoda / VW and some Ford vehicles.
OEM Codes : 3359 | MP1-301 | T10008 | T10050 | T20102

Diesel
t Click picture for more information
Timing Tools - VAG

CT3883

Timing Tools - VAG

VAG Timing Tools
For Audi / VW 2.5 V6 TDi Engines
with Crankshaft Locking Pin
and Camshaft Locking Plates.
VW Passat 2.5 V6 TDI
Audi A4 / A6 / A8 2.5 V6 TDI
Skoda Superb 2.5 V6 TDI

Timing
t Click picture for more information
Crankshaft Locking Tools - VAG

CT3884

Crankshaft Locking Tools - VAG

VAG Crankshaft Locking Tools
for 1.4 | 1.6 |1.9 | 2.0 TDI Engines / 2002 - 2008
Allows checking and adjustment of the engine timing
during tooth belt and camshaft replacement.
Crankshaft Locking Tool
Pump Wheel / Camshaft Locking Tool
Crankshaft Locking Tool
Locking Pin - 4mm
Locking Pin for V-belts

Crankshaft
t Click picture for more information
VW 1.9 Timing Tool

CT4397

Timing Tool - VW

VAG 1.9 TDi Timing Tool
Applicable to
Seat : Cordoba / Ibiza / Inca / Leon / Toledo - 99 - 06
Volkswagen : Bora / Golf / New Beetle
OEM Codes : T20038 | T10098

VW
t Click picture for more information
Timing Tools - VW

CT3887

Timing Tools - VW

VAG Timing Tools
for VW 1.2L Engines 8155-1
Also replacement parts for CT3146 Timing Set
OEM Code : T10123

Timing
t Click picture for more information
Timing Tool Set - Audi VW Volvo

CT3676

Timing Tool Set - VAG / Volvo

VAG Timing Tool Set
Setting and Locking Kit
Tools for locking top dead centre and
setting tools to re-check correct alignment
on Petrol and Diesel Engine Vehicles
Applicable to : PSA / VAG and Volvo.

Timing
t Click picture for more information
VAG Diesel Timing Tool Set

CT3585

Timing Tool Set - VAG Diesel

VAG Timing Tool Set
Diesel Engine Timing Belt replacement
Camshaft and Crankshaft Locking Tools
Camshaft Wheel Puller | Balance Shaft Fixing Tool
Suitable for a wide range of VW Group vehicles.

VAG
t Click picture for more information
VAG Diesel Engine Timing Kit

CT4176

Timing Tool Set - VAG Diesel

VAG Timing Tool Set
For 1.6 | 2.0 TDi CR Diesel Engines from 2012 onwards.
Cambelt Tensioner Locking Tool 2.5 mm
Hex Keys : 6mm | 8mm
2 Fuel Pump Locking and Camshaft Alignment Pins
Auxiliary Drive Tensioner Pin
Camshaft / Crankshaft Timing Pin
Crankshaft Timing Tool and Locking Pin
Sprocket Holding Tool for High Pressure Fuel Pump.

VAG
t Click picture for more information
VAG Diesel Engine Timing Kit

CT0521

Timing Tool Set - VAG Diesel

VAG Timing Tool Set
Diesel Engine Setting / Locking Kit
for Belt Drive 2.4 / 2.5D SDI / TDI / TDICR engines.
Crankshaft Pulley Holding Tool
Camshaft Setting Plate
Injection Pump Locking Pin
Crankshaft Locking Pin
Tensioner Adjuster
VW Crofter / IT and Transporter

VAG
t Click picture for more information
VAG Diesel Engine Timing Kit

CT5572

Timing Tool Set - VAG Diesel

VAG Timing Tool Set
For use on Audi / VW 3.0 TDi diesel engines.
Applicable to :
Audi A4 | A5 | A6 | A7 | A8 | Q5 | Q7 - 2014 onwards
VW Amorak - 2014 onwards.

VAG
t Click picture for more information
VAG Diesel Timing Tool Set

CT3587

Timing Tool Set - VAG Diesel

VAG Timing Tool Set
For Timing Belt replacement
on 2.7 / 3.0 V6 TDi PD
Common Rail Diesel Engines
With Camshaft Wheel Puller
Camshaft and Crankshaft Locking Tools
Suitable for a wide range of Audi / VW vehicles

VAG
t Click picture for more information
VAG Diesel Timing Tool Set

CT4881

Timing Tool Set - VAG Diesel

VAG Timing Tool Set
for 2.7 | 3.0 | 4.0 | 4.2 Diesel Engines
Crankshaft Adjusters - Gearbox End / Pulley End
Cam & Crankshaft Locking / Retaining Pins
Camshaft Sprocket Adjuster
HP Pump Sprocket Remover
Balance Shaft Locking Pin

VAG
t Click picture for more information
VAG Diesel Timing Tool Set

CT4603

Timing Tool Set - VAG Diesel

VAG Timing Tool Set
for 1.2 / 1.4 / 1.9 / 2.0 / 2.7 / 3.0 Diesel Engines
also 1.9 TDI PD Engines
Allows the adjustment of phase timing
and cylinder head assembly / installation.
Camshaft Alignment / Locking Pins and Tools
Crankshaft Adapters / Locking Pins / Tools
Injection Pump Locking Pins
Tensioner / Pulley Locking Pins

VAG
t Click picture for more information
VW 1.2L Timing Tool Set

CT2102

Timing Tool Set - VW

VAG Timing Tool Set
for VW Lupo / Polo etc.
For 1.2 Litre 3 Cylinder Engines from 2002 Onwards.
For Volkswagen | Seat | Skoda vehicles
OEM Codes : T10123 | T10121 | T10120

VW
t Click picture for more information
VAG Timing Belt Tensioner Adjuster

CT3568

Timing Tool Set - VAG Timing Belts

VAG Timing Tool Set
Tensioner Adjuster Set
for VAG Timing Belts
Set contains three specialised wrenches and pins
required to access the timing belt tensioners
fitted to a wide range of VAG petrol and diesel engines.

VAG
t Click picture for more information
VAG FSI Injection Pump Tool

CT4976

Injection Pump Tool - VAG FSI Engines

VAG 3.6 FSi Injection Pump Sprocket Retaining Tool
VAG 3.6L FSi Injection Pump Sprocket Retaining Tool
For holding the high pressure pump in place when adjusting valve timing.
Suitable for VAG 3.6L / 6 cylinder / 4 valve engines.
VW Passat - 357 / 3C2 / 3C5 starting from 2006
VW Touareg - 7L6 / 7LA starting from 2006
Audi Q7 - 4LB starting from 2007

VAG
t Click picture for more information
VAG Timing Chain Clamping  Tool

CT4977

Timing Chain Clamping Tool - VAG 4.2FSi

VAG Timing Chain Clamping Tool
for 4.2 V8 FSi Engines
Required for tensioning the timing chain
when working on the camshaft adjuster and other engine repairs.
For 4.2 litre FSi engines with 8 cylinders and direct injection.

VAG
t Click picture for more information



Next Last

Product Search

Search Icon
Section 1 Icon Section 2 Icon Section 3 Icon Section 4 Icon Section 5 Icon Section 6 Icon Section 7 Icon Section 8 Icon Section 9 Icon Section 10 Icon

Cannon Tools Limited   •  20 Station Road,  Rowley Regis,  West Midlands,  B65 0JU,  United Kingdom

 T +44 (0) 121 561 6760
